PS5 HDMI Port Repair: What It Costs And Why It Beats A New Console

A damaged HDMI port is the most common reason a PS5 stops showing a picture, and replacing the port costs a fraction of a new console.

Why PS5 HDMI ports fail and what a repair costs

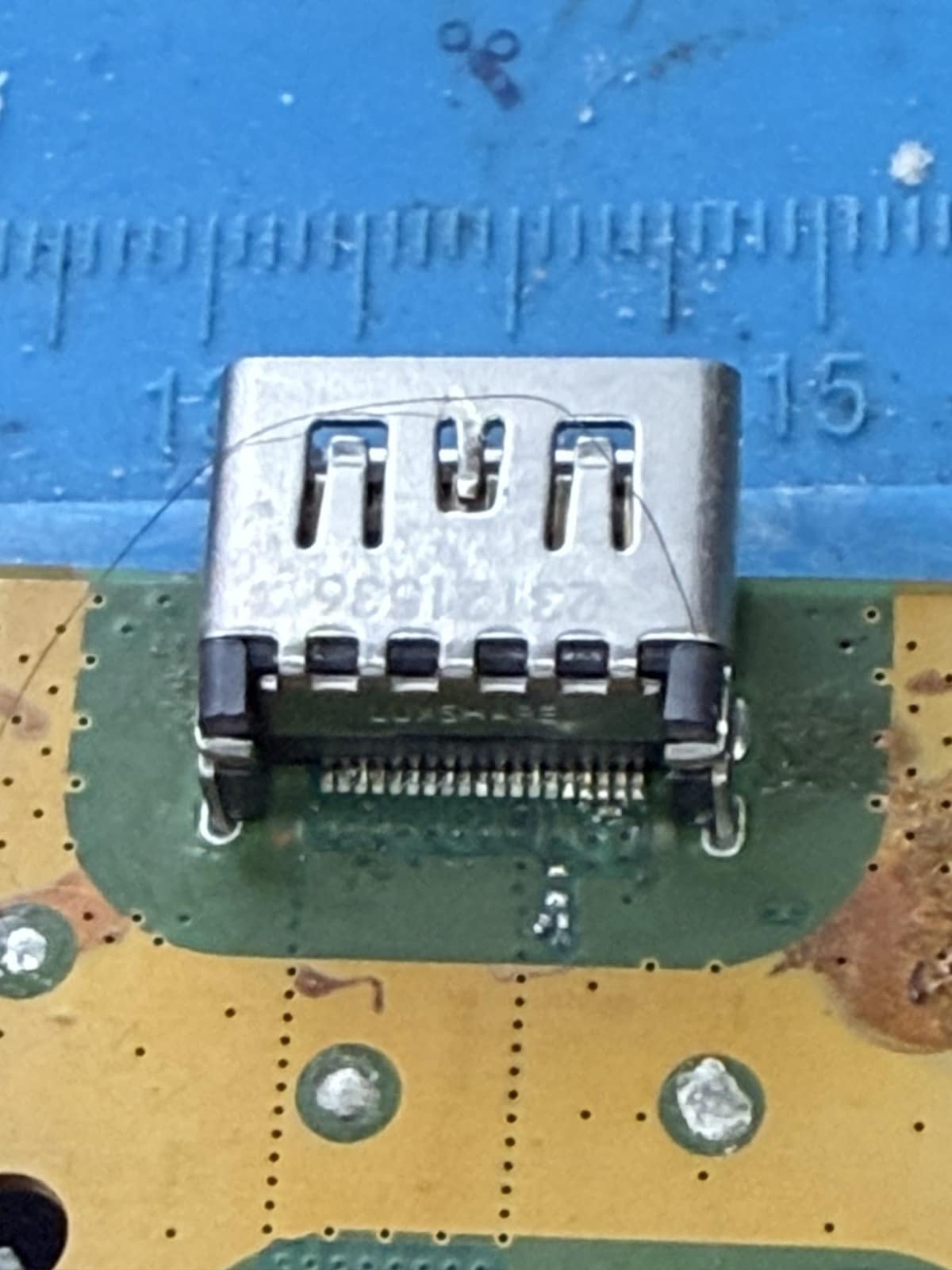

The HDMI port on a PS5 is soldered straight onto the main board, and it carries the full weight of whatever cable is plugged into it. When the console is moved with the cable still attached, pulled off a shelf, or knocked over, the port takes the strain: the pins bend, the solder joints crack, or the port lifts away from the board. The result is no picture, a picture that flickers when the cable is touched, or a cable that no longer sits firmly. A replacement port fitted and tested typically comes to £120–£220 all-in — far less than a new console, and you keep your existing machine, games and saves.

A loose or damaged port often still works intermittently, which tempts people to keep wiggling the cable until the picture comes back. Every attempt can short neighbouring pins, and that is how a straightforward port replacement becomes damage to the HDMI controller chip behind it — a slower and more expensive repair. If the picture only appears at a certain cable angle, stop using it and get it looked at.

Need help right now? Our PS5 HDMI Port Repair engineers can come directly to your home or office anywhere in Greater London to diagnose and fix this for you.

Try a different HDMI cable and a different input on the TV. It takes two minutes and rules out the cheapest causes first.
Shine a torch into the port. Bent, flattened or missing pins, or a port that sits crooked in the case, point to physical damage.
Start the console in safe mode by holding the power button until the second beep, then choose Change Video Output. If the picture returns there, the port is likely fine.
Note whether the console powers up normally, with the light behaving as usual. Power and picture faults are diagnosed differently.

What a proper HDMI port replacement involves

An HDMI port replacement is fine soldering work done in our workshop, so we collect the console, carry out the repair and return it, usually within a few days. This is what that work involves.

Inspect the port under magnification for bent pins, cracked solder joints and lifted pads on the board.
Test the HDMI controller circuit behind the port, so a damaged chip is found before the port is replaced rather than after.
Remove the old port and clean the pads, then fit and solder a new port with correct alignment.
Test the console on a real display at full resolution and with a cable held at angles before it goes back.

Stopping the new port going the same way

Almost every damaged HDMI port we replace was caused by the cable being pulled while plugged in. These habits prevent most of them.

Never move or lift the console with the HDMI cable still plugged in.
Leave some slack in the cable so a tug on the TV end cannot pull on the port.
Keep the console out of walkways and away from pets and children who might catch the cable.
